SP Plus TC 400 Seal Tong

block Voir délai
15 kg
Garanties sécurité Politique de livraison Politique retours

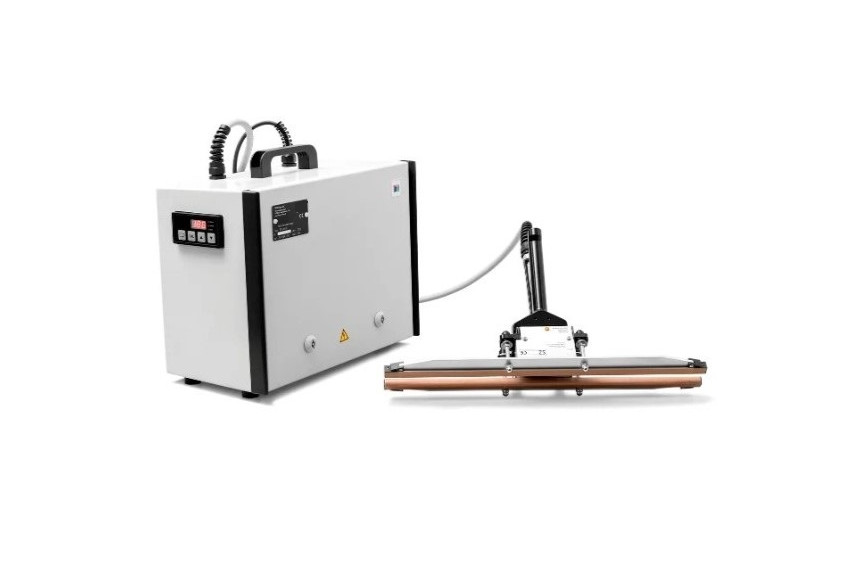

Portable bi-active sealing clamps (a sealing bar on each jaw) with temperature control. Sealing length: 400 mm. Generator included. Designed to seal thick heat-sealable plastic materials and certain lightweight laminated films, up to 2 x 0.3 mm.

En savoir plus
€4,505.00 (VAT incl.) €4,505.00 (VAT excl.)
VAT excluded Livraison en 7 à 10 jours
block Voir délai

Description

A mobile, robust, and intuitive solution for your sealing needs in cleanrooms or workshops.

This complete set (including the sealing clamp and generator) enables you to seal, at medium to high throughput, all heat-sealable plastic materials such as polyethylene (PE), as well as certain lightweight laminated films (to be validated through prior testing).

Designed for intensive industrial use, this sealing clamp stands out for its enhanced durability: dual mechanical reinforcement ensures perfect alignment of the sealing bars for a clean and consistent finish.

Its mobile, cordless operation offers great flexibility: you can use it in any position to easily seal plastic bags, create a waterproof cover around a bulky product, or close high-capacity bags or those packed in cartons.

The bi-active clamps, equipped with a heating element on each jaw, allow the sealing of thick plastic films up to 2 x 0.3 mm PE.

Technical features include:

  • Jaw length: 400 mm

  • Seal width: 3 mm

  • Sealing time: adjustable up to 9.9 seconds

  • Sealing temperature: adjustable up to 250°C

  • Jaw opening: 30 mm

The power generator is now equipped with an intuitive digital control panel, allowing precise adjustment of the sealing temperature, cooling temperature, and sealing time. This simple and modern interface ensures optimal control over the sealing process, guaranteeing consistent results even on sensitive materials.

During operation, an indicator light shows the progress of the cycle. Once the sealing time is complete, the power automatically shuts off, the light turns off, and after a few seconds of cooling, you can open the clamp and remove your sealed product.

Additional accessories are available to tailor the configuration to your specific needs.

15 kg
Data sheet
Reference
SP Plus TC 400
Sealing length
400 mm
Sealing width
3 mm
Maximum film thickness
2 x 300 microns
Coating
Epoxy
Sealing type
Impulse (biactive)
Integrated knife
No
Temperature maxi.
250°C
Protection IP
IP 20
Sealing time
Until 9.9 sec
