Impulse Seal Tong

Impulse Seal Tong

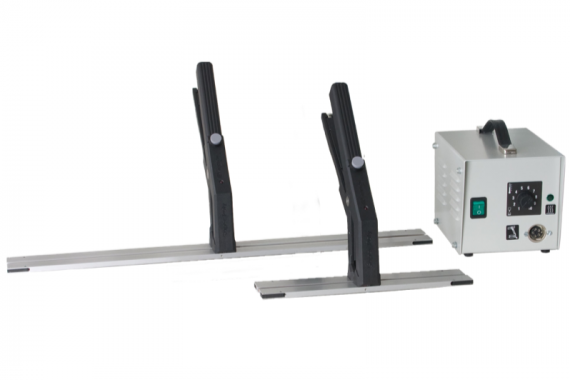

Thanks to its portability, this seal tong can create a waterproof cover around a large machine, as well as seal large-capacity bags or bags in drums. Two sealer widths are available: 400 mm and 630 mm with an opening of 30 mm. The sealing width is 3 mm. The power generator is equipped with a potentiometer to control the sealing time based on the film thickness. The same generator can operate with both sealer widths, but not simultaneously.

Operation is very simple. Once released, the sealer closes with the help of a pressure spring. A single press of a button activates the sealing process, and an indicator light turns on. After the sealing time (1 to 3 seconds maximum) has elapsed, the power is automatically cut off, and the light goes out. After a few seconds of cooling, the sealer can be opened to remove the sealed section.

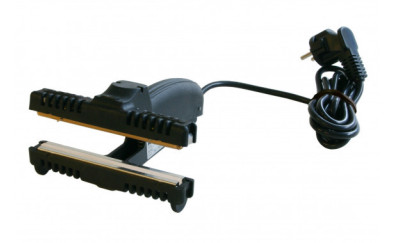

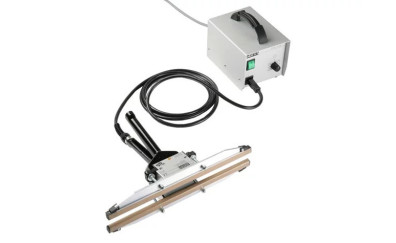

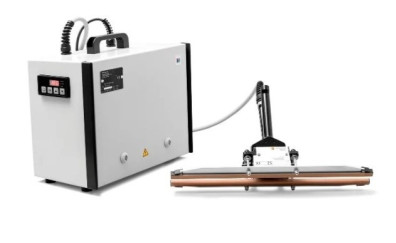

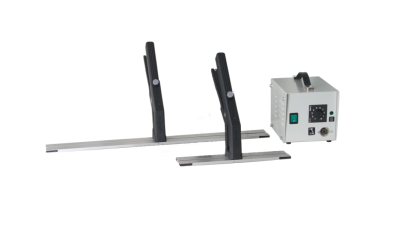

Futura Poly Super Poly SP Plus Seal Tong SP Plus Z Seal Tong SP TC Seal Tong
Sealing length 150 mm 380 mm and 630 mm 300 mm to 600 mm 300 mm and 400 mm 400 mm
Sealing width 1 mm 3 mm 5 mm 3 mm 3 mm
Generator No Necessary Included Included Included
Maximum film thickness 2 x 300 microns 2 x 300 microns 2 x 300 microns 2 x 300 microns 2 x 300 microns
Coating Epoxy Plastic Plastic Plastic Plastic
Sealing type Impulse (simple) Impulse (biactive) Impulse (biactive) Impulse (biactive) Impulse (biactive)
Temperature control No No No No Yes
Validation No No No No No
Cutting system No No No No No
Pedal operated In option No In option In option In option
Protection IP IP 20 IP 20 IP 20 IP 20 IP 20
Voltage 230 V mono 230 V mono 230 V mono 230 V mono 230 V mono
