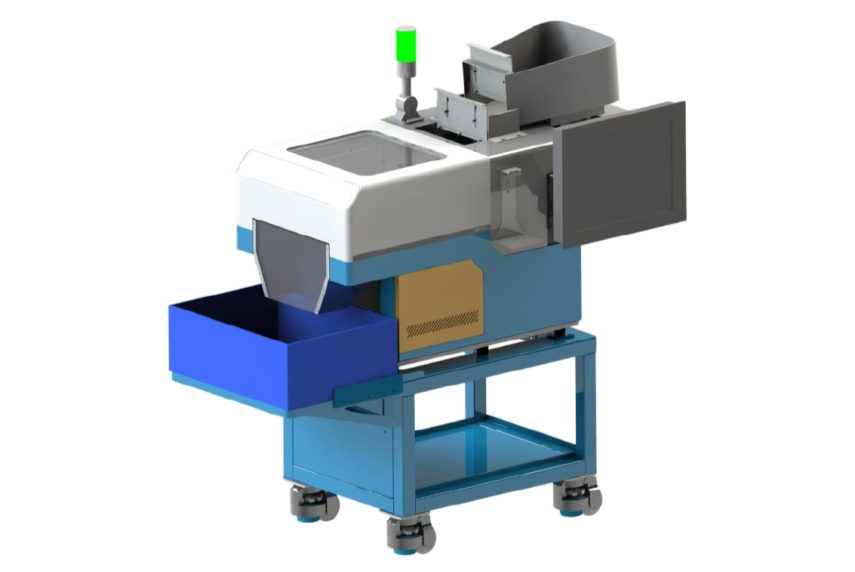

FP Count V4

The FP Count V4 is a high-frequency counting machine equipped with 4 independent channels, designed for fast counting in industrial environments. It is particularly well suited for batch counting and repetitive high-speed production.

Unlike the FP Count V1, it operates on a multi-channel logic, allowing multiple streams to be processed simultaneously, making it a high-performance solution for applications requiring large volumes and rapid cycles.

Advantages and Key Features

The FP Count V4 delivers high performance for structured production:

• Multi-channel counting: simultaneous processing for increased productivity
• Ideal for batch counting: consistent repeatability and accuracy
• High speed: up to 1,000 parts/min
• Reliable accuracy: 99.5% with rigorous control
• Cycle automation: suited for serial production
• Industrial compatibility: easy integration into automated lines

Note: In free counting mode, simultaneous use of all 4 channels may result in:

• uneven part distribution
• reduced accuracy
• residual parts remaining in the channels

For this reason, this machine is primarily recommended for continuous batch counting applications.

Target Applications

The FP Count V4 is designed for:

• High-throughput industries
• Mass production manufacturers
• Automated sites with continuous flow
• Automotive, electronics, and hardware sectors

Compatible product types:

• Parts from Ø 2 to 30 mm
• Length under 50 mm
• Fasteners, metal or plastic components

Options and Scalability

The FP Count V4 offers several customization possibilities:

• Multi-station configuration
• Integration with automatic packaging systems
• Full automation of batch counting cycles
• Advanced recipe management interface

It can be upgraded to a more automated version such as the FP Count V4 Auto, dedicated to automated processing of multiple orders.
