IST
The IST TC is a pneumatically sealed bag sealer designed for closing thick bags. Compact in size, it is available in several sealing lengths: 520, 720, 1020, 1320, and 2500 mm.
This machine comes in several versions:
-

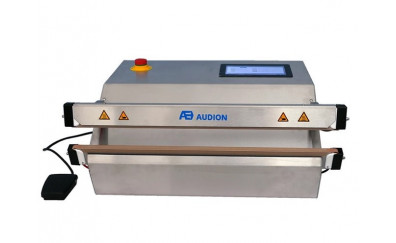

The standard "TC" version, with temperature control, is intended for food and industrial applications.
-

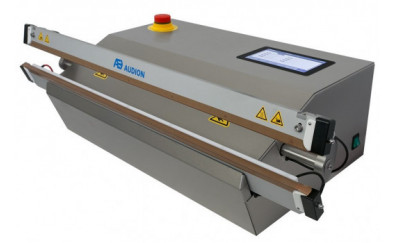

The "MED PLUS" version, with validated temperature, time, and pressure parameters, complies with ISO 11607-2 and EN 868-5 standards for use in the medical and pharmaceutical sectors.
-

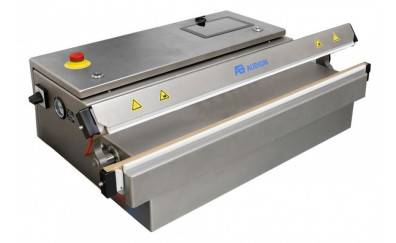

And the "MED PLUS IP65" version, designed for applications in wet environments.
| IST Version TC | IST Version ALK | IST Version MED PLUS | IST Version MED PLUS IP65 | IST Version MED PLUS XL | |
| Sealing length | 520 mm 720 mm 1020 mm |
720mm | 520 mm 720 mm 1020 mm 1320 mm |
720 mm 1020 mm |
2500mm |
| Sealing width | 8 mm | 8 mm | 8 mm | 8 mm | 8 mm |
| Sealing type | Impulse | Impulse | Impulse | Impulse | Impulse |
| Biactive Seal | Yes | Yes | Yes | Yes | Yes |
| Maximum film thickness | 2 x 400 microns | 2 x 400 microns | 2 x 400 microns | 2 x 400 microns | 2 x 400 microns |
| Covering | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Protection IP | IP 20 | IP 20 | IP 20 | IP 65 | IP 20 |
| Cutting system | Yes | Yes | Yes | Yes | No |
| Validation | Temperature | Temperature Pressure Timer |
Temperature Pressure Timer |
Temperature Pressure Timer |
Temperature Pressure Timer |
| Optional calibration | Yes | Yes | Yes | Yes | Yes |
| IQ/OQ | No | Yes | Yes | Yes | Yes |
