The Industrial Sealer Magneta (ISM) is a fully electric impulse sealer with an electromagnetic locking mechanism, available in three sealing lengths: 420, 620, and 1020 mm. Each length comes in a painted version (ISM) or a stainless steel version (ISMS), suitable for humid or challenging environments.
The digital control panel allows for easy adjustment of sealing and cooling times. With its bi-active sealing bars (heating wire on each bar) of 5 mm width and wire tensioners at each end, the ISM series can seal PE and PP films up to 2 x 200 microns thick. The cycle starts with a simple press on the electric foot pedal.
This sealer stands out for its sealing quality, compact design, and ability to operate continuously under intensive use.
| ISM 420 | 420 ISMSK IP65 | ISM 620 | 620 ISMSK IP65 | ISM 1020 | 1020 ISMSK IP65 | |
| Sealing length | 420 mm | 420 mm | 620 mm | 620 mm | 1020 mm | 1020 mm |
| Sealing width | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm | 5 mm |
| Maximum film thickness | 2 x 250 microns | 2 x 250 microns | 2 x 250 microns | 2 x 250 microns | 2 x 250 microns | 2 x 250 microns |
| Covering | Epoxy | Stainless steel | Epoxy | Stainless steel | Epoxy | Stainless steel |
| Sealing type | Impulse (biactive) | Impulse (biactive) | Impulse (biactive) | Impulse (biactive) | Impulse (biactive) | Impulse (biactive) |
| Cutting system | Optional | Included | Optional | Included | Optional | Included |
| Pedal operated | Yes | Yes | Yes | Yes | Yes | Yes |
| Protection IP | IP 20 | IP 65 | IP 20 | IP 65 | IP 20 | IP 65 |
| Voltage | 230 V mono | 230 V mono | 230 V mono | 230 V mono | 230 V mono | 230 V mono |
| Power consumption | 950 W | 950 W | 1500 W | 1500 W | 1100 W | 1100 W |
There are 6 products.

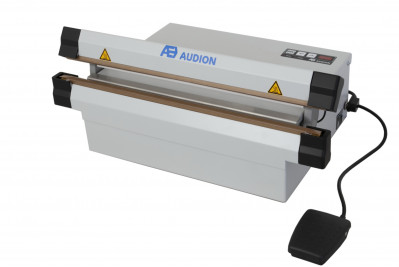

Professional sealer with electric motor locking and optional cutting system. Operated by foot pedal, with sealing and cooling time controlled by a timer. Sealing length: 420 mm.

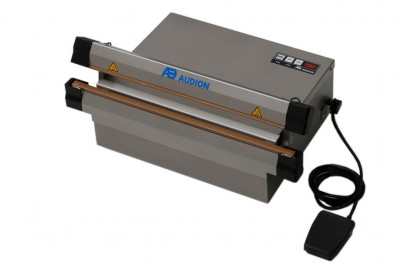

Professional stainless steel sealer with electric motor locking and optional cutting system. Operated by foot pedal, with sealing and cooling time controlled by a timer. Sealing length: 420 mm.

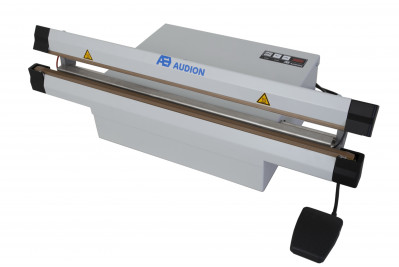

Professional sealer with electric motor locking and optional cutting system. Operated by foot pedal, with sealing and cooling time controlled by a timer. Sealing length: 620 mm.

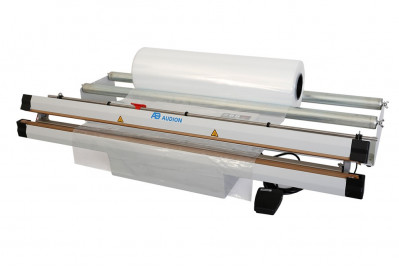

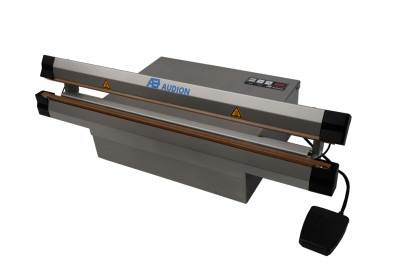

Professional stainless steel sealer with electric motor locking and optional cutting system. Operated by foot pedal, with sealing and cooling time controlled by a timer. Sealing length: 620 mm.

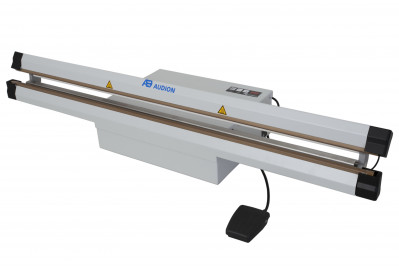

Professional sealer with electric motor locking and optional cutting system. Operated by foot pedal, with sealing and cooling time controlled by a timer. Sealing length: 1020 mm.

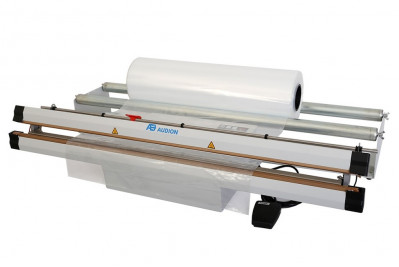

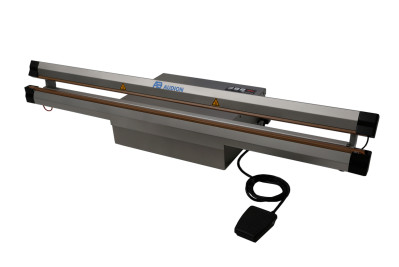

Professional stainless steel sealer with electric motor locking and optional cutting system. Operated by foot pedal, with sealing and cooling time controlled by a timer. Sealing length: 420 mm.
